Architecture ​
Kubeception ​
Kubeception — Kubernetes in Kubernetes in Kubernetes

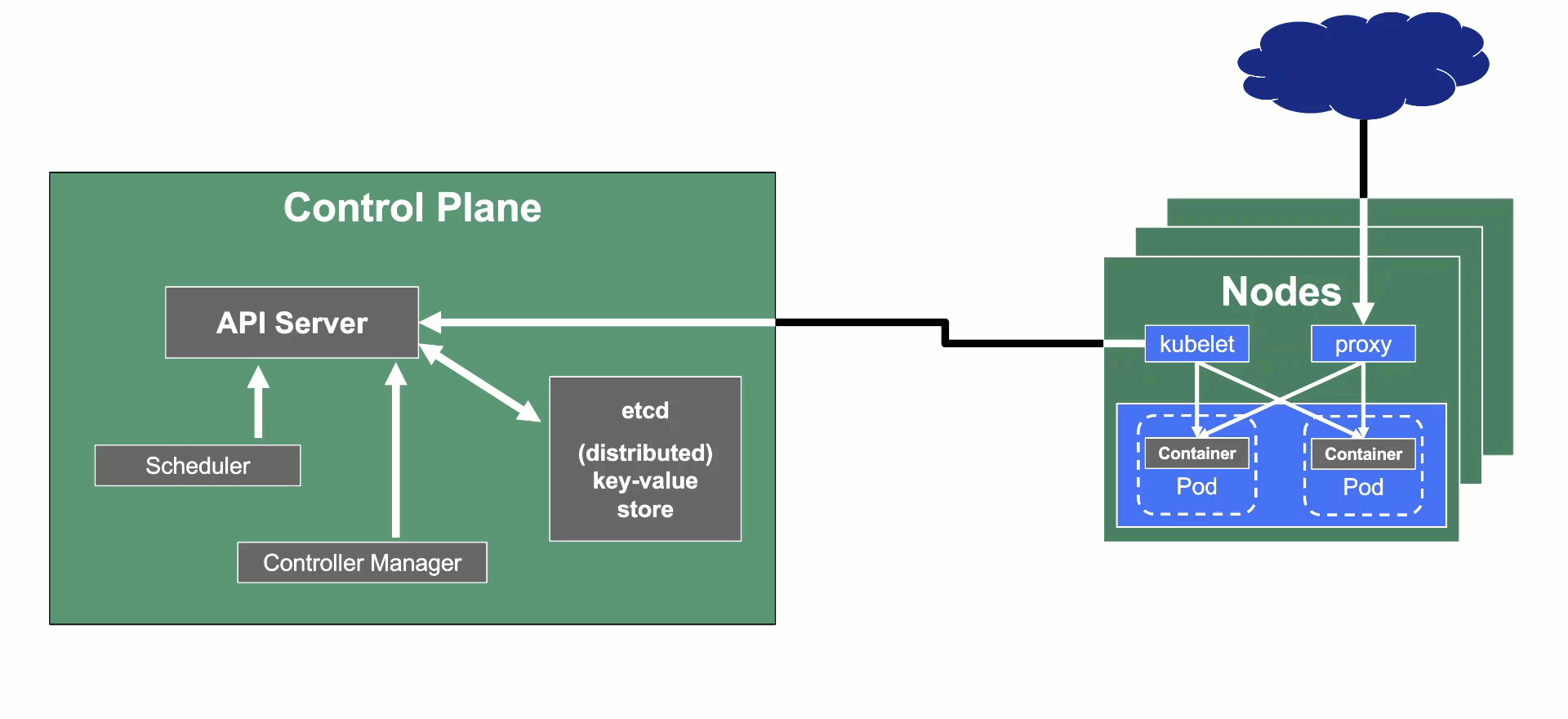

In the classic setup, there is a dedicated host / VM to host the control plane of a Kubernetes cluster. However, these are just normal programs that can easily be put into containers. Once in containers, Kubernetes Deployments and StatefulSets (for the etcd) can be made to watch over them. And by putting all that into a separate, dedicated Kubernetes cluster you get Kubernetes on Kubernetes, aka Kubeception (named after the famous movie Inception with Leonardo DiCaprio).
But what are the advantages of running Kubernetes on Kubernetes?
- It makes use of resources more reasonable. Instead of providing a dedicated computer or virtual machine for the control plane of a Kubernetes cluster — which will probably never be the right size but either too small or too big — you can dynamically scale the individual control plane components based on demand and maximize resource usage by combining the control planes of multiple Kubernetes clusters.
- It helps introducing a first layer of high availability. What happens if the API server suddenly stops responding to requests? In a traditional setup, someone would have to find out and manually restart the API server. In the Kubeception model, the API server is a Kubernetes Deployment and has dedicated liveness and readiness probes. Should the API server fail, its liveness probe will fail and the corresponding pod is restarted automatically — sometimes even before anybody would have noticed the API server being unresponsive.
- By running the control plane in a separate cluster to which the user does not have access, we eliminate the possibility for the user to unintentionally modify the control plane resources (pods, secrets, configmaps, ...) and break the cluster
In Gardener's terminology, the cluster hosting the control plane components is called a seed cluster. The cluster that end users actually use (and whose control plane is hosted in the seed) is called a shoot cluster.
The worker nodes of a shoot cluster are simple virtual machines in a hyperscaler (EC2 instances in AWS, GCE instances in GCP or ECS instances in Alibaba Cloud). They run an operating system, a container runtime (e.g., containerd), and the kubelet that gets configured during node bootstrap to connect to the shoot's API server. This API server runs in the seed cluster and is exposed through an ingress. The connection between the kubelet and the API server happens over public internet and is — of course — TLS-encrypted.
In other terms: you use Kubernetes to run Kubernetes.
Cluster Hierarchy in Gardener ​
Gardener uses many Kubernetes clusters to provide users with individual shoot clusters.

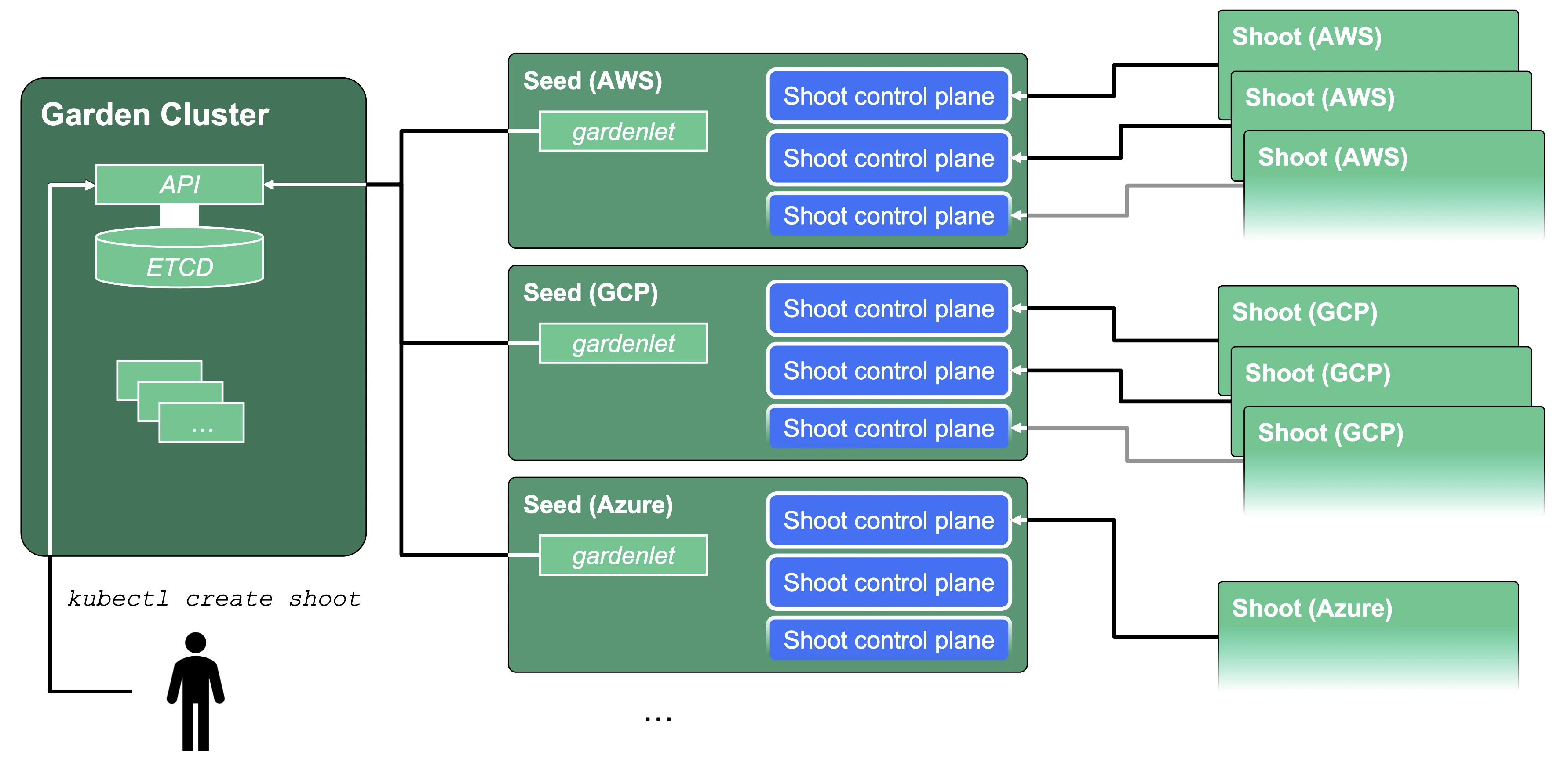

At the heart of Gardener's cluster hierarchy is the garden cluster. Since Gardener is 100% Kubernetes native, a Kubernetes cluster is needed to store all Gardener-related resources. The garden cluster is actually nodeless — it only consists of a control plane, an API server (actually two), an etcd, and several controllers. The garden cluster is the central brain of a Gardener landscape and the one you connect to in order to create, modify or delete shoot clusters — either with kubectl and a dedicated kubeconfig or through the Gardener dashboard.
The seed clusters are next in the hierarchy — they are the clusters which will host the "kubeceptioned" control planes of the shoot clusters. For every hyperscaler supported in a Gardener landscape, there would be at least one seed cluster. However, to reduce latencies as well as for scaling, Gardener landscapes can have several different seeds in different regions across the globe to keep the distance between control planes and actual worker nodes small.
Finally, there are the shoot clusters — what Gardener is all about. Shoot clusters are the clusters which you create through Gardener and to which your workload gets deployed.
Gardener Components Overview ​

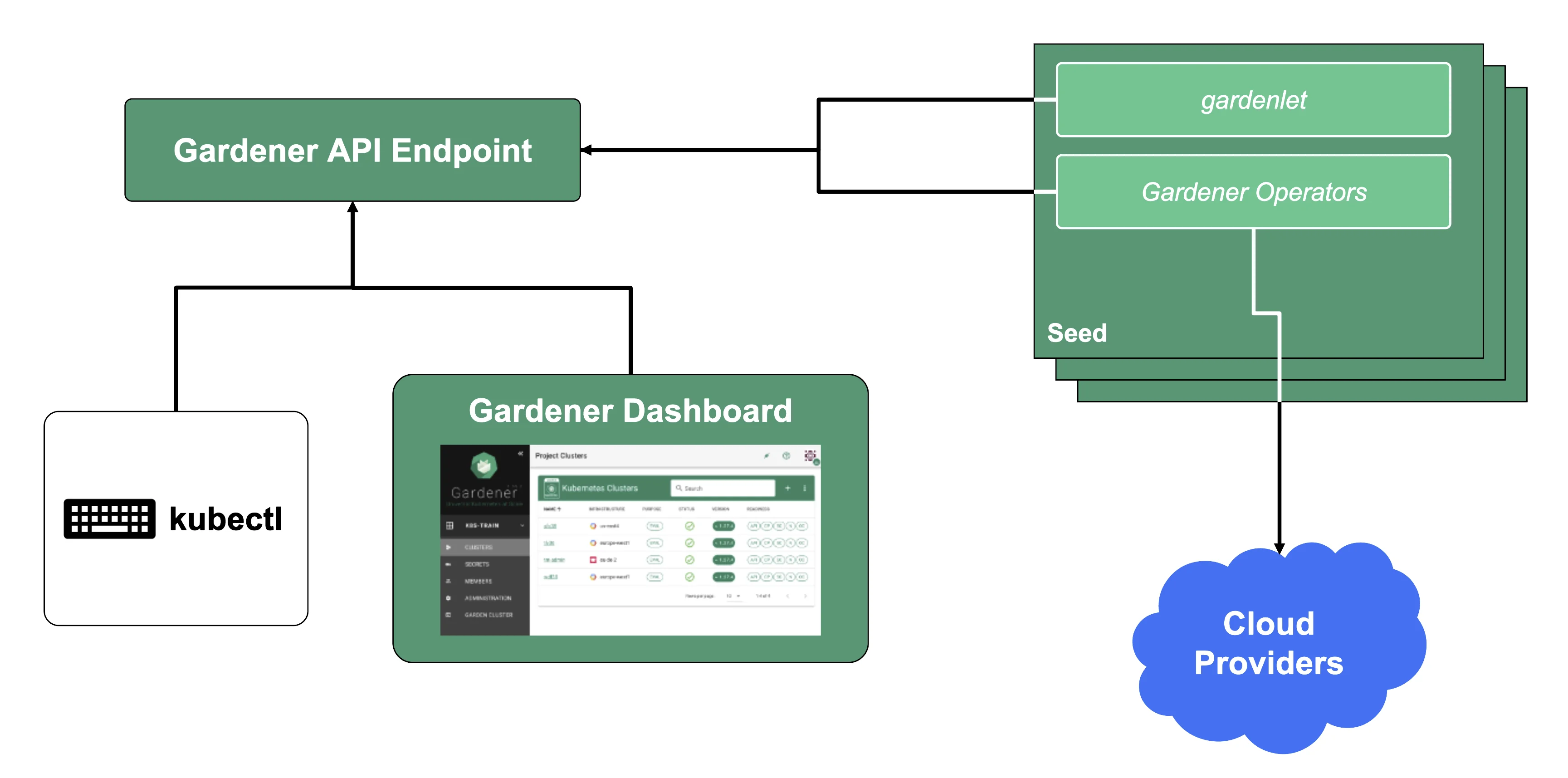

From a very high level point of view, the important components of Gardener are:
The Gardener API Endpoint ​
You can connect to the Gardener API Endpoint (i.e., the API server in the garden cluster) either through the dashboard or with kubectl, given that you have a proper kubeconfig for it.
The Seeds Running the Shoot Cluster Control Planes ​
Inside each seed is one of the most important controllers in Gardener — the gardenlet. It spawns many other controllers that will eventually create all resources for a shoot cluster, including all resources on the cloud providers such as virtual networks, security groups, and virtual machines.
Gardener's API Endpoint ​
Kubernetes' API can be extended — either by CRDs or by API aggregation.

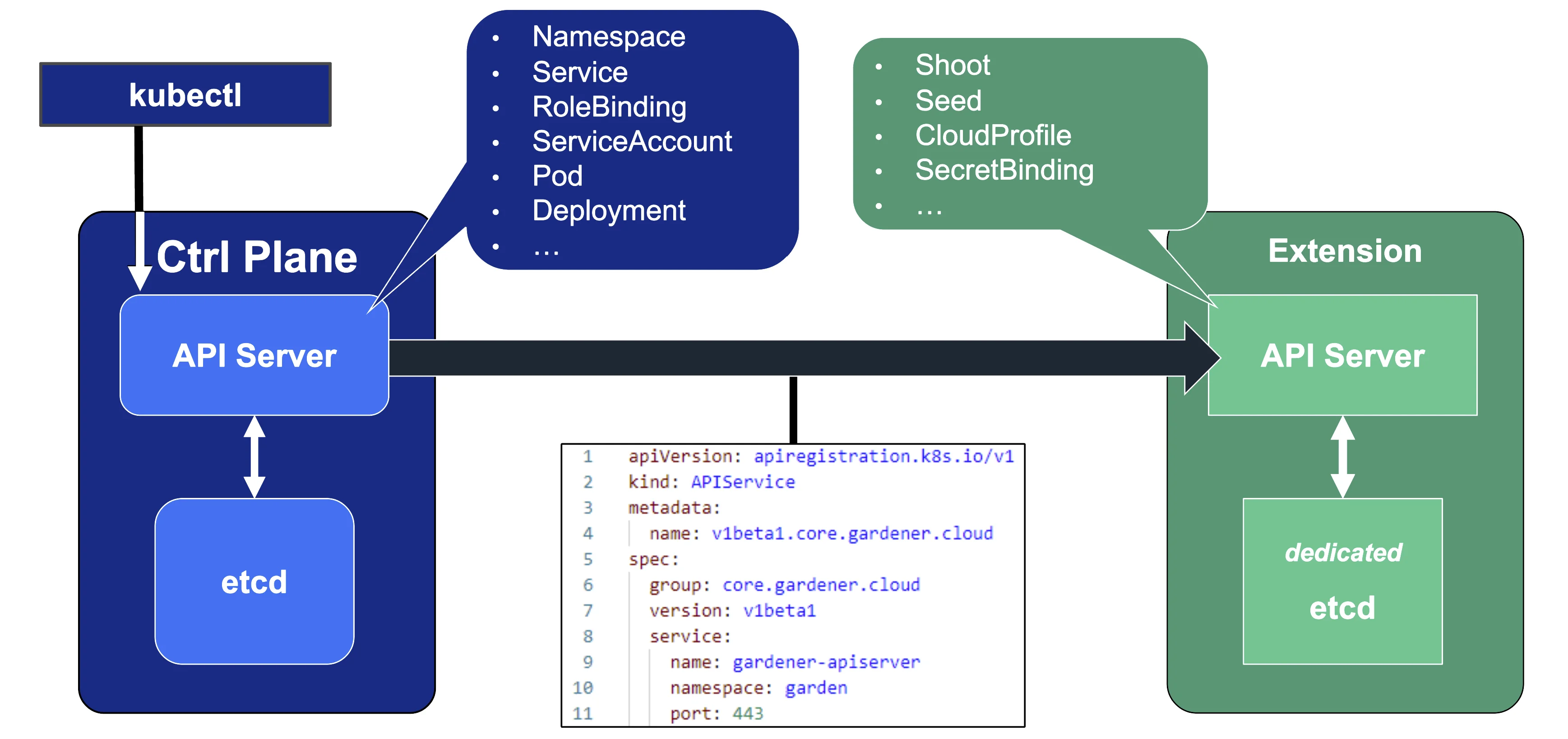

API aggregation involves setting up a so-called extension API server and registering it with the main Kubernetes API server. The extension API server will then serve resources of custom-defined API groups on its own. While the main Kubernetes API server is still used to handle RBAC, authorization, namespacing, quotas, limits, etc., all custom resources will be delegated to the extension API server. This is done through an APIService resource in the main API server. It specifies that, e.g., the API group core.gardener.cloud is served by a dedicated extension API server and all requests concerning this API group should be forwarded to the specified IP address or Kubernetes service name. Extension API servers can persist their resources in their own etcd or in the main API server's etcd.

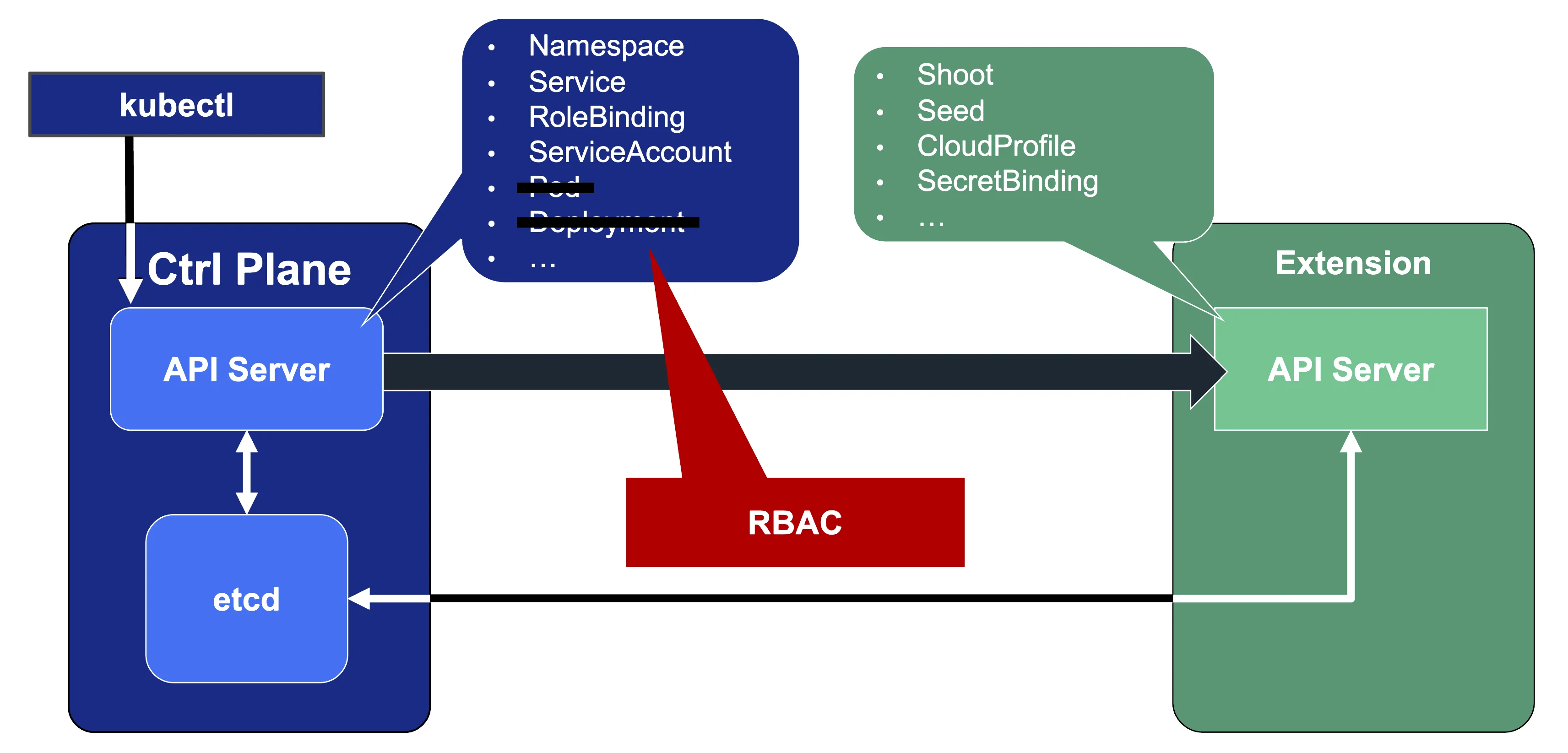

Gardener uses its own extension API server for resources like Shoot, Seed, CloudProfile, SecretBinding, etc. It does not set up a dedicated etcd to persist its resources but uses the existing etcd of the main Kubernetes API server. This is possible because the resources of Gardener's API are part of the API group gardener.cloud and thus do not interfere with resources of the main Kubernetes API in etcd.
In case you are interested, you can read more on:
Gardener API Resources ​
Since Gardener's API endpoint is a regular Kubernetes cluster, it would theoretically serve all resources from the Kubernetes core API, including Pods, Deployments, etc. However, Gardener implements RBAC rules and disables certain controllers so that these resources are made unavailable. Objects like Secrets, Namespaces, and ResourceQuotas are still available, though, as they play a vital role in Gardener.

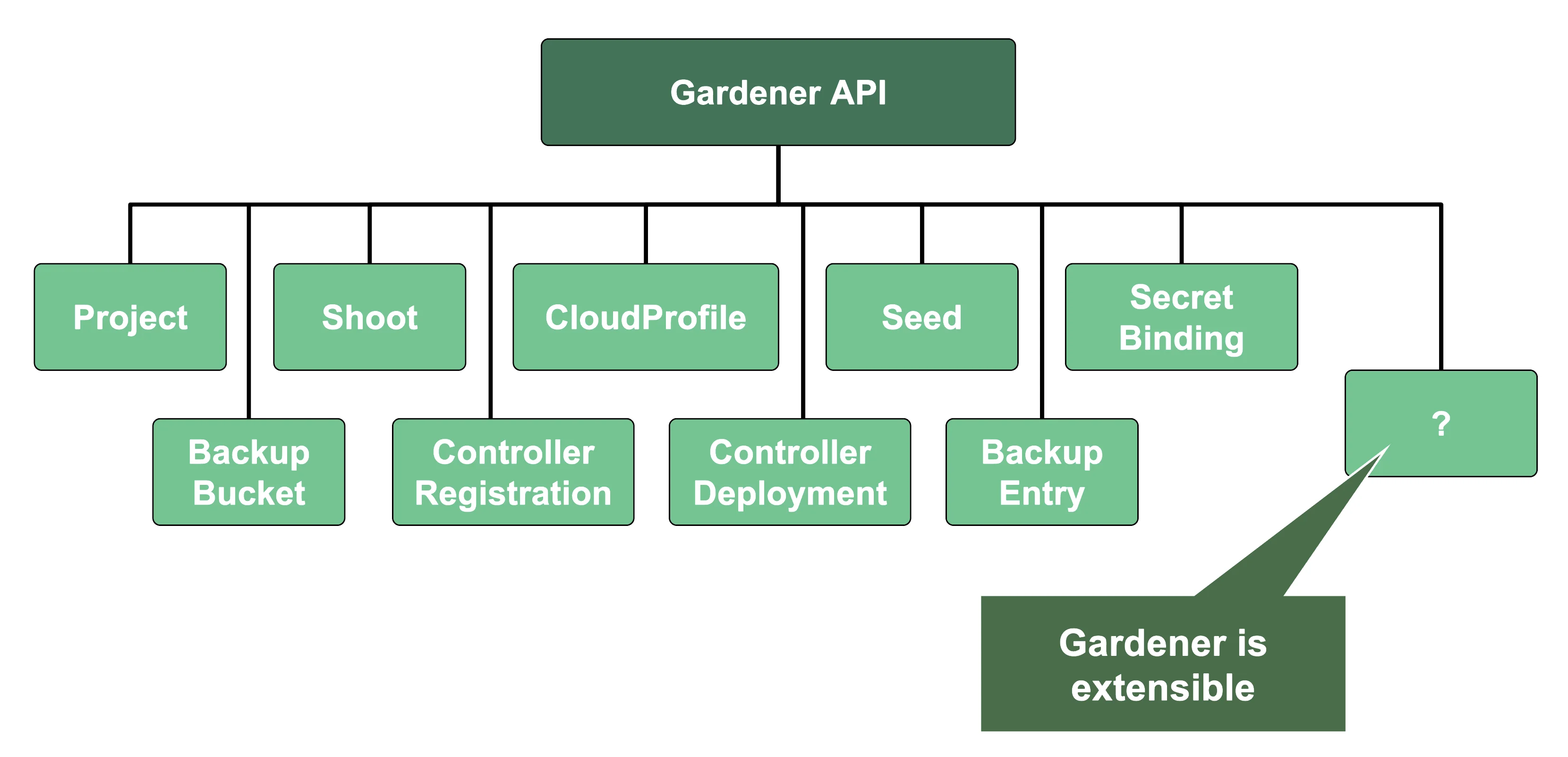

In addition, through Gardener's extension API server, the API endpoint also serves Gardener's custom resources like Projects, Shoots, CloudProfiles, Seeds, SecretBindings (which are relevant for users), ControllerRegistrations, ControllerDeployments, BackupBuckets, BackupEntries (which are relevant to an operator), etc.
